| ชื่อแบรนด์: | FY |
| เลขรุ่น: | FY-51CZ |
| ขั้นต่ำ: | 1 ชุด |
| เงื่อนไขการจ่ายเงิน: | L/C,D/A,D/P,T/T,Western Union,MoneyGram |
| ความสามารถในการจําหน่าย: | 300 ชุดต่อเดือน |

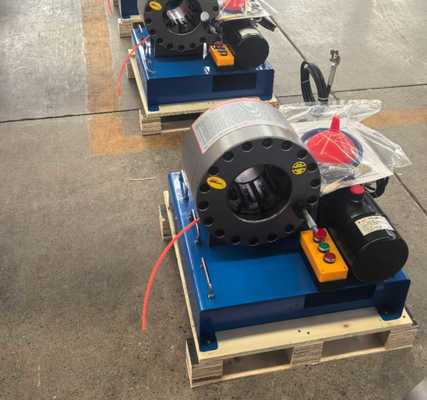

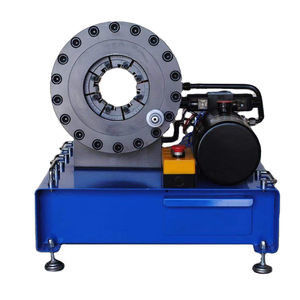

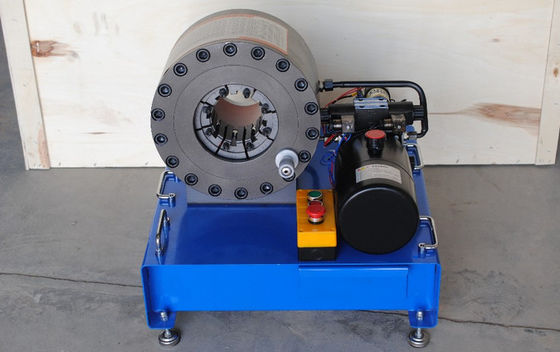

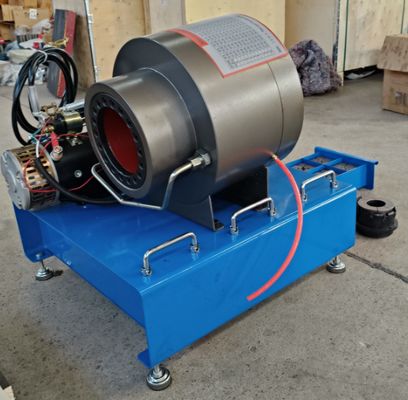

Introducing the Smart Light 12V/24V Hydraulic Hose Crimping Machine, a versatile and efficient tool designed for crimping hydraulic hoses up to 2 inches in diameter. This portable machine is perfect for automotive professionals and service providers, making it an ideal solution for car loading applications.
| Model | FY-51CZ Pipe Crimping Machine |
|---|---|
| Crimping Range | 6-51mm (1/4"-2") |
| Crimping Force | 600T |
| Max. Opening | 114mm |
| Die Sets | 10 |
| System Pressure | 30Mpa |
| Accuracy | 0.01mm |
| Standard Voltage | 12V/24V |
| Weight | 170KG |
| Dimensions | 650mm × 600mm × 600mm |
NOTE:
Forged Cylinder: One piece structure prevents oil leakage, saves transfer time, and increases productivity.
Micrometer: FY51CZ features high accuracy dial (0.01mm) for precise measurements.

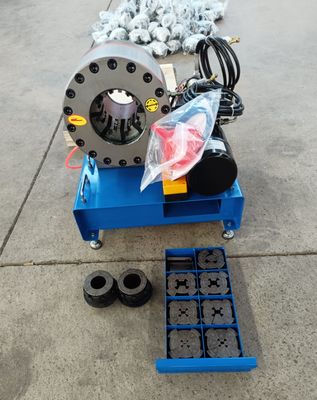

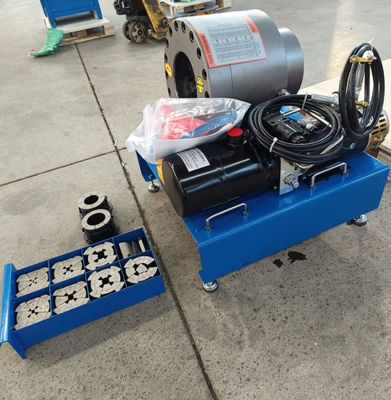

Die Set Reference Sheet: Helps choose proper die set for different crimping sizes.
Wide Usage: Suitable for mobile vans with 12V/24V power supply, high pressure oil rubber hose assembly, low pressure water/air hose pressing, steel tube swaging, wire rope pressing, and lock device making.
